Trailer Couplers — A-Frame & Adjustable (2" & 2-5/16")

TractorTrailerParts manufactures trailer couplers — A-frame couplers and adjustable channel-mount couplers — for 2-inch and 2-5/16 inch hitch balls. Capacities run from 3,500 lb up to 25,000 lb GVWR, supplied in bulk to US distributors, online resellers, utility-trailer companies, boat-trailer builders and OEM trailer manufacturers.

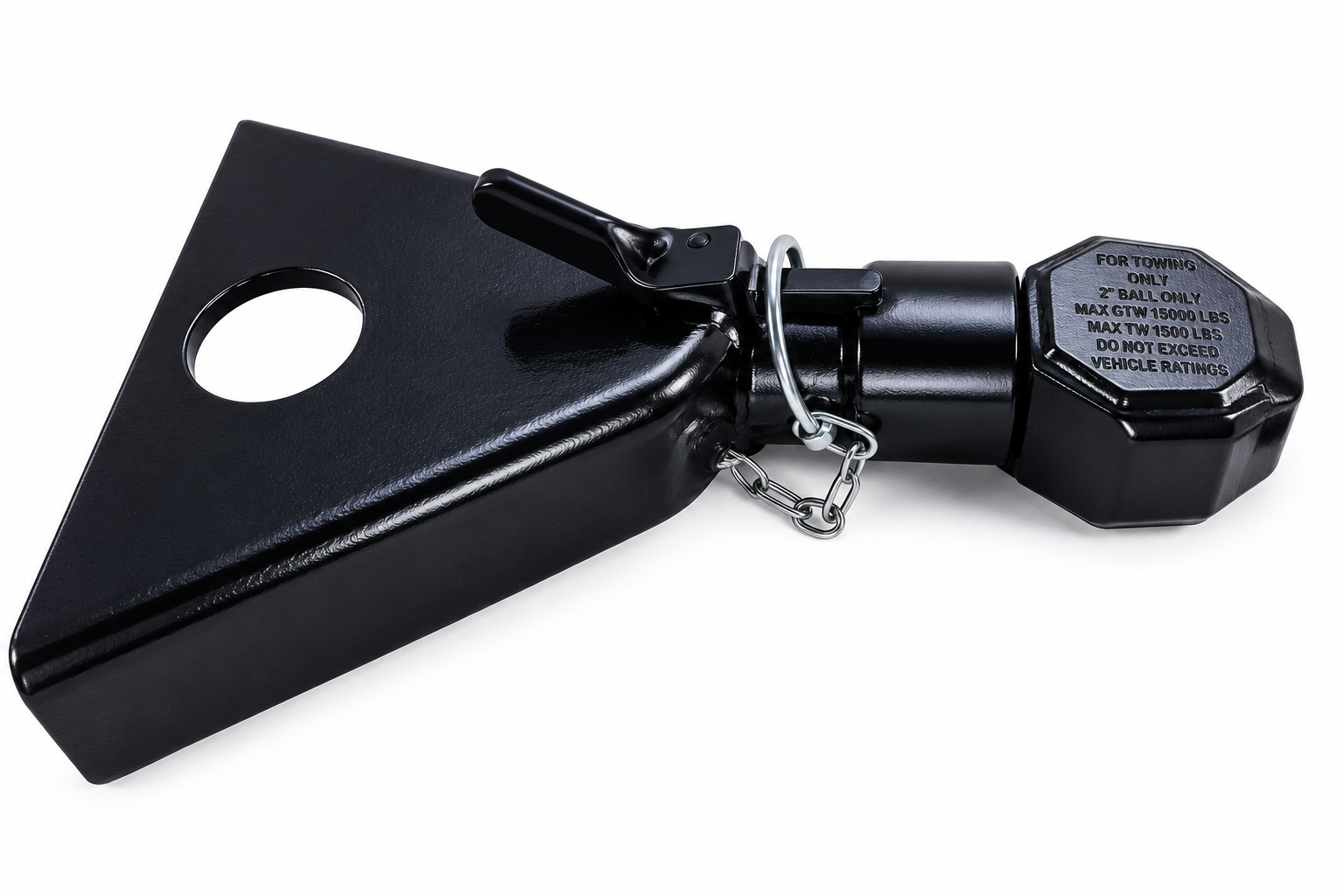

A-Frame trailer coupler for 2 inch or 2-5/16 inch hitch ball with 3-hole bolt pattern

A-Frame Trailer Couplers

Heavy-duty A-frame couplers for 2" and 2-5/16" balls — bolt-on or weld-on, with 3,500 lb to 14,000 lb GVWR ratings for utility, boat, cargo and farm trailers.

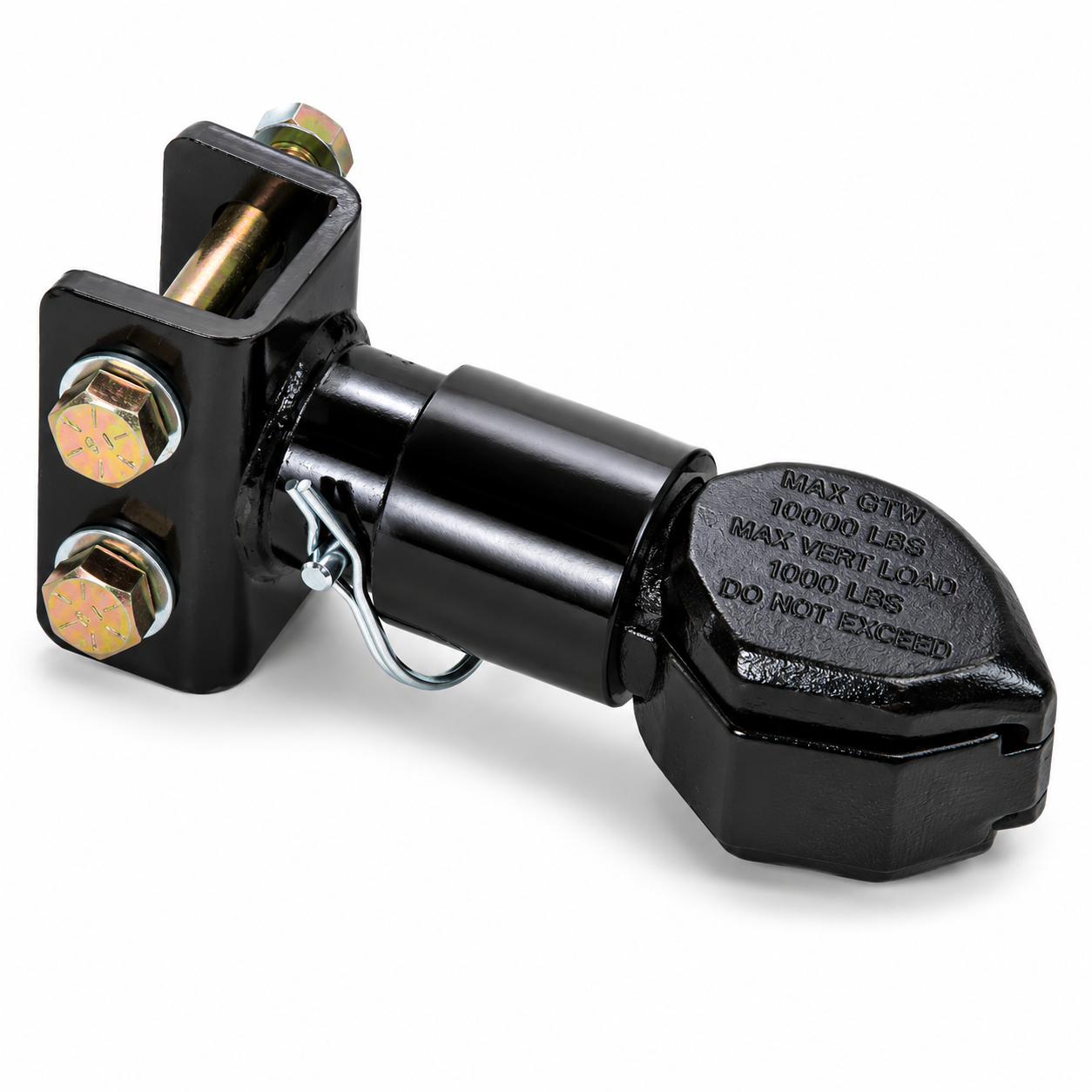

Adjustable channel-mount trailer coupler 2-5/16 inch up to 25,000 lb GVWR

Adjustable Trailer Couplers

Channel-mount adjustable couplers (2-5/16") up to 25,000 lb GVWR — height-adjustable for varying tow-vehicle heights and heavy-duty trailer applications.

Trailer Coupler Product Range

  • A-frame trailer couplers — 2" ball, 3.5K / 5K / 7K GVWR
  • A-frame trailer couplers — 2-5/16" ball, 10K / 14K GVWR
  • Adjustable channel-mount couplers — 2-5/16", 14K / 20K / 25K GVWR
  • Trailer coupler assemblies (coupler + safety chain D-rings)
  • Coupler brackets & mounting plates
  • Replacement trailer coupler latches & pins
  • Custom couplers manufactured to drawing, sample or OEM part number

Key Features & Specifications

  • Ball sizes: 2" and 2-5/16" (1-7/8" on request)
  • Weight ratings: 3,500 lb to 25,000 lb GVWR
  • Mount styles: A-frame, straight-tongue, adjustable channel mount
  • Bolt patterns: 3-hole and 4-hole standard, custom on request
  • Materials: high-tensile formed steel, cast options available
  • Finishes: powder coat, zinc plate, hot-dip galvanized
  • Latch styles: standard wedge, low-profile, spring-loaded
  • Export-ready bulk packaging, palletized for ocean freight

Applications

  • Utility trailers
  • Boat trailers
  • Cargo & enclosed trailers
  • Agricultural & farm trailers
  • Livestock & horse trailers
  • OEM trailer assemblies
  • Replacement & aftermarket trailer parts

Custom Manufacturing

Send a drawing, sample, OEM part number or weight-rating spec and we'll quote tooling, MOQ and bulk pricing for US distributors, importers and trailer OEMs.

Request a Quote

Trailer Coupler FAQs

What are the different types of trailer couplers?

The main trailer coupler types are A-frame couplers (mount to V-shaped tongues), straight-tongue couplers (mount to straight tube tongues), adjustable channel-mount couplers (slide up or down on a vertical channel), and gooseneck couplers (sit over an in-bed ball). We manufacture A-frame and adjustable channel-mount styles for 2" and 2-5/16" balls.

What size trailer coupler do I need?

Match the coupler ball size to your hitch ball: 1-7/8" couplers for light utility trailers, 2" couplers for most utility, boat and small cargo trailers, and 2-5/16" couplers for heavy-duty trailers up to 25,000 lb GVWR. Always confirm the coupler's weight rating exceeds your loaded trailer weight.

What weight ratings do your trailer couplers come in?

3,500 lb, 5,000 lb, 7,000 lb, 10,000 lb, 14,000 lb, 20,000 lb and 25,000 lb GVWR. A-frame couplers cover the lighter range (3.5K–14K), while adjustable channel-mount couplers cover the heavier range (14K–25K).

Are your trailer couplers bolt-on or weld-on?

Both. A-frame couplers are typically bolt-on with 3-hole or 4-hole patterns. Adjustable channel-mount couplers bolt onto the vertical channel of the trailer tongue. Weld-on versions are available on request.
